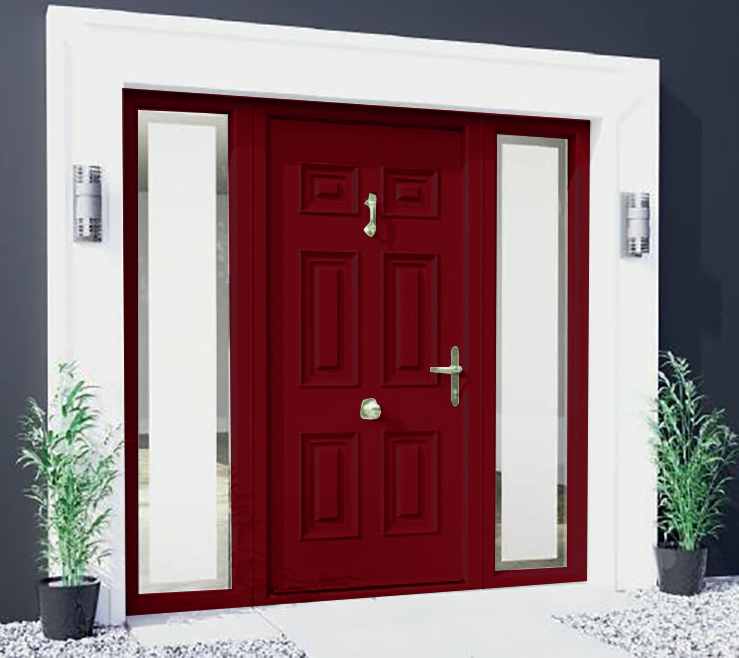

Georgian Solid

Composite	65mm fibreglass reinforced Monocoque Composite Door, Patented Design protected in Europe by patent no 1766176, Canadian and US Pending
Door Colours	White, Cream, Red, Blue, Green, Bog Oak, Rosewood, Anthracite Grey, Chartwell Green, Light Oak, Silver Grey, Agate Grey and Burgundy. Please note: Half Sidelight Panels are not available in Silver Grey, Agate Grey or Burgundy.
Double Rebate	Double rebate using two seals achieving excellent draught proofing
Single Door Slab Size	Min. 782 mm x 1855 mm Single Door Min. 878 mm x 1951 mm
	Max. 910 mm x 2095 mm With Frame Max. 1006 mm x 2191 mm
	Please Note: Minimum Size 858 with 57mm frame on lock side.
	with low Stormguard Plus threshold, max height 2181mm, min 1942mm with low Stormguard Plus rebated, max height 2162mm, min 1922mm with low Stormguard threshold, max height 2163mm, min 1923mm
	with 57mm uPVC threshold, max height 2171mm, min 1931mm
Heritage Slam Lock with Leaf Only	Less 96mm from complete door with frame
	Available for Liniar and Kommerling Profile only. Min Leaf Height 1900mm
Heritage Slam Lock with Frae	Including 1200 pull handle, 600 curved handle and Slendertech handle
	Min Size 911 – Paris, London, Rome, Viking, Edinburgh, Seville, T&G, Picasso, Rubens, Turner, Orpen, Monet, Joyce, Oxford, Belfast, Albany, Cashel, Glasgow, Kensington
	Min Size 901 – Dublin, Giza, Santiago, Cambridge, Kildare
Heritage Slam Lock and Frame	Min size 916 – Georgian, Naples, Cairo, Palermo
with Escutcheon	Min size 891 – Sunbeam, T&G, Paris, London, Rome, Viking, Edinburgh, Seville, Picasso, Rubens, Turner, Orpen, Monet, Joyce, Oxford, Belfast, Albany, Cashel, Glasgow, Kensington
	Min size 901 – San Marco, Dublin, Giza, Santiago, Cambridge, Kildare
Warning	Doors fitted with a Heritage Slam lock, it is recommended to have a PVC Threshold or Storm Guard Plus Rebated Threshold only.
	Please Note : Not A Storm Guard or a Storm Guard Plus Threshold
U Value rating	Door body U Value – 0.205, Triple glaze U value – 1.1, combined U value – 0.64
	Solid Door U Value including frame – 0.85 / Glazed Door U Value including frame – 0.98
Glazing beads	Designed to be removed internally
Triple Glazing	Triple glazed units using warm edge, available in all doors. Backing glass, available as standard in Clear, Cotswold, Minister, Stippolite and Flemish. * other obscure glass available optional extra (time delay).
	All satinized triple glazed units available with clear glass only.
Lock type	2 hook 2 shootbolt 4 roller and deadlatch / Heritage Slam lock optional extra / PAS 23/24 Approved Thumb turns to be used with the Heritage Slam lock
	All door furniture and locks have a 12 month guarantee
Door numerals Warning	Supply only available 0-9 in Gold, Chrome, Black and Satin Silver

	In the event of a door being fitted behind a Glazed Patio Door, the area needs to be well vented to prevent the excessive build up of heat.
	Satinized and flemish glass may have imperfections as the raw material is prone to slight flaws or blemishes
Hardware	High quality handle, letter plate, door knocker solid or with spyview, all available with 12 month warranty. MANUFACTURED TO BS 7412. Please Note: Letterboxes can be fitted at the bottom of all doors if requested, this however is not compliant with building regulations.
	Black, Gold, Bright Chrome, Satin Silver, Smokey Chrome and White. (Please note chrome handle and letterbox
Hardware Colour	Door knobs and doctors knocker supplied only in Gold and Chrome. may vary sightly in colour from door knocker.)
Drainage Caps	Available in 13 colour options.
Handle type	Lever / Lever	Lever / Pad	BS 7412 and BS 1670:1998
Handle Maintenance	Stainless pull handles must be maintained every few months with soap and water to avoid discolouration. Do not use any abrasive cleaners
Hinge type	Rebated hinge available White, Caramel, Black and Cream
PVC outerframe	70mm with galvanized steel reinforcing
Sculptured
PVC outerframe & Sidelight colour	White, Cream, Red, Blue, Bog Oak, Green, Rosewood, Light Oak, Chartwell Green, Anthracite Grey, Burgundy, Agate Grey and Silver Grey available using 28mm triple glazed sidelights
Threshold	Extra strong – standard and low thresholds available
